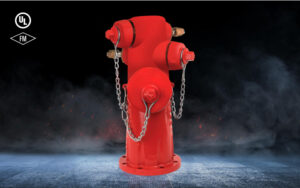

Wet Type Fire Hydrant

• Manufactured in accordance to AWWA C503 standard.
• 6” Flanged inlet to ANSI B16.1 class 125 / ANSI B16.5 Class 150 with 1 no 4 (or) 4 ½” NH threaded Pumper Outlet and 1 or 2 no’s of 2½” NH threaded outlet with cap and clamp.
• Outlets Threads to NFPA 1963 Standard
• Maximum working pressure of 250 psi
• Working Temperature of -10°C to 82°C
• Hydrant top designed to incorporate to fix 3” (or) 4” flanged inlet monitors
• Corrosion protection: Inlet and exterior is e-coated to a dry film thickness of 1.6 mils minimum then fusion bonded epoxy powder coated (FBE) to 300 micron thickness.

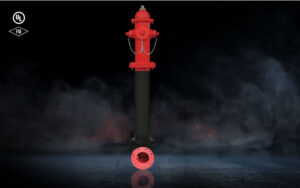

Dry Pillar Fire Hydrants

• Fire Hydrants are designed to comply with ANSI/ AWWA C502.
• Dry barrel design eliminates damage to the hydrant caused by freezing of the upper part.
• Fire Hydrants are designed for high performance and easy to install, maintain and repair.
• Excellent and proven flow characteristics.
• 2 x 2½” NH thread connectors for soft hose connection.
• 1 x 4½” NH thread pumper connection for fire trucks.
• 6” inlet connection complying to mechanical joint ANSI/ AWWA C111/A21.11 or flange connection ASME 5 Class 150.
• Operation threads are corrosion protected and for easy operation.
• Fire hydrants are high pressure rated to 250 psi compatible with today’s trends.
• Internal epoxy paint system gives high corrosion protection to hydrants.
• Advanced safety couplings and flange design reduces traffic damage to hydrant.
• Main valve is easily removed from either the bonnet flange or ground line flange.

Underground Hydrant

• BSI Kitemark certified.
• Body material made of grey cast iron to BS EN1561.
• Material of spindle and threaded part of valves which engages with it is made of stainless steel to BS 10088-1.
• Material for the screwed outlet is made of high tensile brass to BS 12163:2011.
• Spindle sealing (two seals) is of the toroidal sealing ring ('0' ring) type and are capable of changing while the valve is under pressure and fully closed.
• A wiper ring is positioned above the spindle sealing’s to prevent the ingress of foreign matter.
• Each hydrant shot is blasted (inside and outside) to SA 2 ½ std.
• All cast iron parts are thoroughly cleaned and painted.

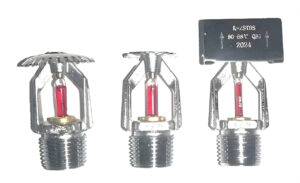

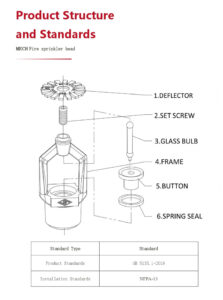

Three installation methods: upright type, pendant type, and horizontal sidewall type.
Three sensitivities: fast response, standard response, and special response.

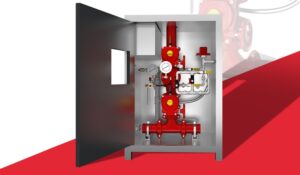

Untuk menjadikannya lebih aman, lebih efisien, dan lebih cerdas, kami mengintegrasikan rain alarm valve, water supply signal control valve, test signal control valve, drainage pipeline, control pipeline, dan lainnya ke dalam satu skid sesuai dengan spesifikasi automatic sprinkler fire extinguishing system.

Skid tersebut dilengkapi dengan double-layer 304 stainless steel insulation box serta sensor yang menampilkan suhu di dalam box secara real time untuk mencapai intelligent temperature control dan memastikan kondisi aplikasi outdoor di area beriklim dingin.

Selain itu, skid juga dilengkapi dengan pressure sensor untuk mengunggah data tekanan ke cloud platform sehingga dapat mencapai fungsi real-time monitoring.

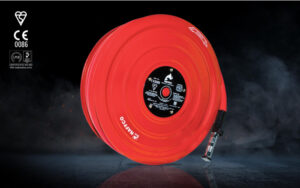

Fire Hose Reels

• BSI Kitemark and LPCB certified.
• Hose Reel Assembly compliance to CPR Directive305/2011/EU is certified by BSI (0086)
• The fire hose reels are capable of rotating in one plane(fixed type) or rotating in more than one plane with mounting on one of the following: swinging arm,swinging pipe or swinging door in manual and automatic version.
• The automatic fire hose reels will open fully within 3 revolution of the reel.
• The nozzle have SHUT, JET and SPRAY control settings.
• The minimum flow rate of hose reels in JET and SPRAY setting is 41 l/min. at 0.6 MPa (6 bar) pressure and setting in chrome plated rotary nozzle is 53 LPM at 0.6MPa (6 bar) pressure.
• The effective throw range of discharge at 0.2 MPa (2bar) pressure is 10 meters in JET setting.
• The reel discs are painted RED with printed user instructions.

Lock Shield Valve

• Solid Wedge, non-rising stem, screwed in bonnet.
• Valves are manufactured in accordance to BS 5154 series B.
• Service temperature -10 to +66ºC.
• Pressure rating is PN 20.
• End connection is BSPT threaded to BS21.
• Material: Brass.

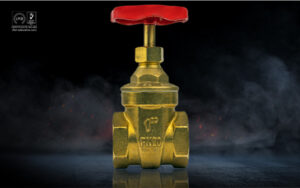

Gate Valve

• Solid Wedge, non rising stem, screwed in bonnet.
• Valves are manufactured in accordance to BS 12288 series B.
• Service temperature -10°C to 66°C
• Pressure rating is PN 20.
• End connection is BSPT threaded to ISO 7-1.
• Material: Brass

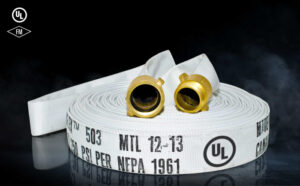

PU Lined Hose

• The hose is of single jacket construction.
• The jacket is made with high tenacity filament polyester yarn in both the warp and weft directions, to provide maximum strength to weight ratio.
• The hose is resistant to chemicals and petrol products, rot & mildew, hydrolysis, and resist deterioration due to exposure UV-rays and ozone.

PERFORMANCE

• The hose, in all sizes, has minimum service, test, and burst pressures as specified in the technical chart.
• The hose has a maximum flow with minimum friction loss.
• The hose has no defects, dirt, knots, lumps or other irregularities affecting the performance of the hose.
• The hose is resistant to kinking and remain flexible to -65°F(-53°C).
• Twisting and warping exceeds NFPA standards.

HOSE DATA

• Available colors: Red, White.
• Standard lengths: 30 meters, Other lengths available upon request.
• Applicable standards: UL219.

APPLICATIONS

Cabinet/Fire Hose Reel/ Fire Hose Rack.

British Standard Couplings

• BSI Kitemark and LPCB certified.
• Castings are clean, sound and free from gross porosity.
• Machined surface is within tolerance and is in accordance with BS 1134-2.
• Coupling washers are made of natural rubber to BS1154.
• Plungers are of self-locking type.

*Kitemark Approved only NFAC - 38-RT* && NFCC - 38 RT*

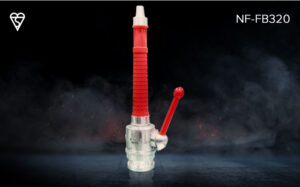

Hand Held Branch Pipe

• BSI Kitemark Certified.
• Handheld Branch Pipes are manufactured in compliance with BS EN 15182-1:2007 & BS EN 15182- 3:2007+ A1:2009
• Body and Tip made of Aluminum.
• Pipe material made of Polyamide.
• Branchpipes test and certificate complying with EN 15182
• Certificate number 1153c (approve by LPCB)
• 13mm smooth bore
• Straight jet and one fixed spray jet
• Aluminum lever operated ≤15N.m
• Aluminum shaft gripping device and obturator
• Aluminum alloy LM25 complying with BS 1490
• Sensitivity to frost -15°C, Sensitivity to heat +55°C
• Non-obstruction ≥3.18mm or ≥4.76mm
• Burst pressure test 60bar

APPLICATIONS

• Industrial and rural fire brigades as well as building protection.
• For general industrial, commercial and civil engineering applications.
• Ideal for Fire Departments and Professional Industry services.
• Refineries, Armed Forces, Airports, Ships, Oil Rigs, Heavy Industry

MAINTENANCE INSTRUCTIONS

• Keep it in
• After use drain the water and disconnect from hose.
• Every 6 months verify the lever operating & Jet/Spray

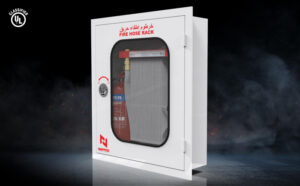

Fire Hose Rack Cabinets
