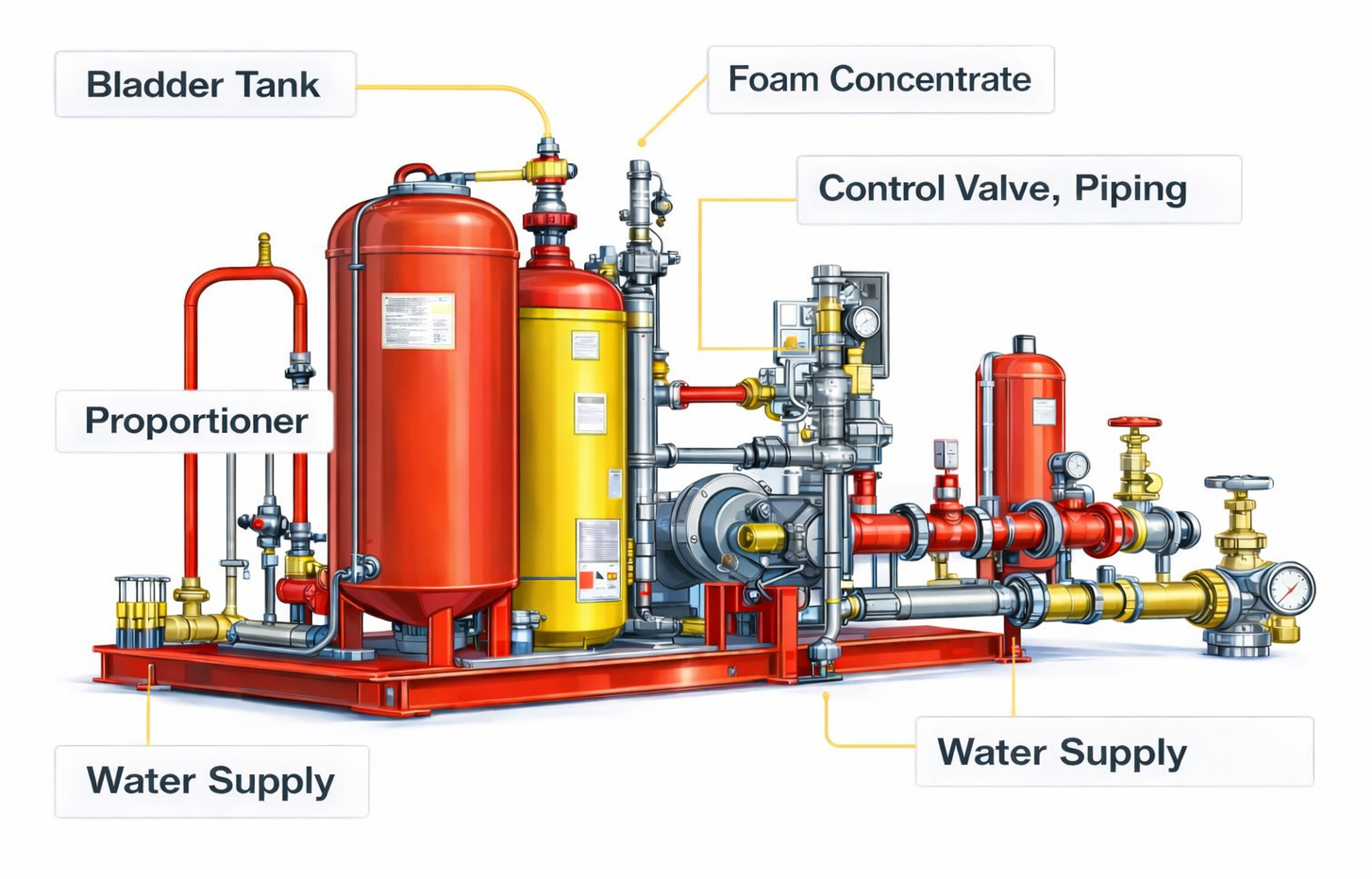

FOAM SYSTEM

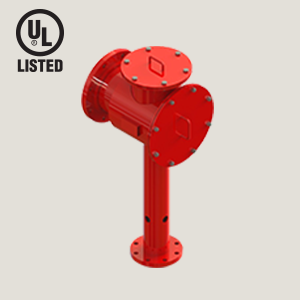

FOAM CHAMBER

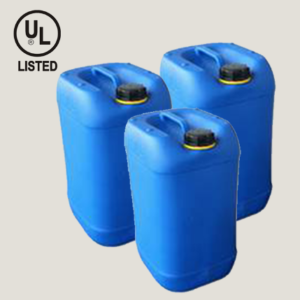

FIRETECH AFFF 1%, 3%, 6% Aqueous Film Forming Foam, +35 F minimum storage and use temperature. Hydrocarbon fuels only.FIRETECH FP 3%, 6%, +35 F minimum storage and use temperature. Hydrocarbon fuels only.FIRETECH FFFP 3%, 6%, +20 F min storage and use temperature. Hydrocarbon fuels only.FIRETECH FREEZE PROTECT AFFF 3%, -20 F min storage and use temperature. Hydrocarbon fuels only.FIRETECH AR-AFFF 1×3%, 3×3%, 3×6%, +35 F min storage and use temperature. For Hydrocarbon fuels and Polar solvent fuels.

•       Fluorine Free SFFF & AR-SFFF 3%
•       High Expansion Foam Concentrate 2%, 3%
•       AFFF 1%, 3%, 6%
•       AR-AFFF 1/3, 3/3, 3/6
•       FLUORO PROTEIN FOAM 3 %, 6%
•       FFFP 3%, 6%
•       AR-FP 3/3, 3/6

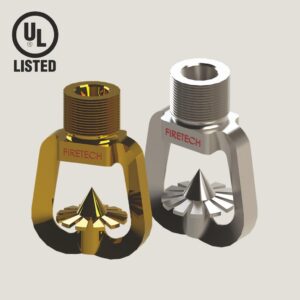

Medium Velocity Water Spray Nozzles

• Discharge angle (degrees): 90, 120, 140
• Approvals – UL Listed

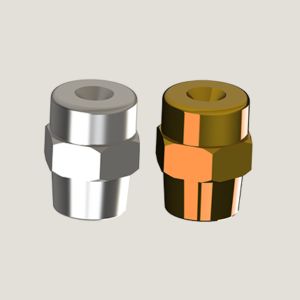

High Velocity Water Spray Nozzles

• End connection: 20 NB (3/4″)
• Material: Brass, Brass with Nickel Chrome finish, Stainless Steel

• K factor (Metric) x Discharge angle (Degrees): 18 x 75, 22 x 80, 26 x 90 and 32 x 100
• Discharge angle (degrees): 90, 120, 140

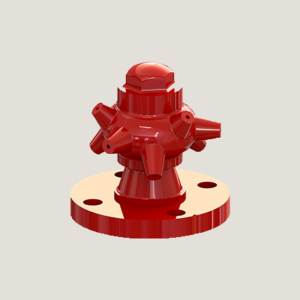

Revolving Nozzle

• Gun metal construction
• K factor, Metric (US): 700 (49), 800 (56) 900 (63) & 1000 (70)

• End connection: 100 NB (4″)
• MISI Flange as per ANSI B16.5, 150#

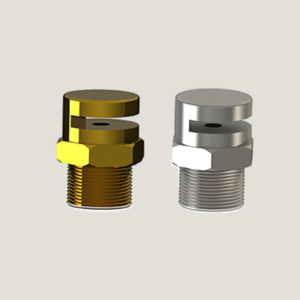

Tank Cooling Nozzle

Water curtain nozzle is an open orifice and non-automatic spray nozzle. Nozzle is designed for use in fixed water spray fire protection systems, especially for protection of fuel storage tanks. Tank Cooling Nozzle is typically mounted in upright position at a distance from the exterior wall of the tank for cooling of the tank. In case of fire in the vicinity of the tank it prevents the tank from absorbing the heat radiation.

Firetech water curtain nozzle are available in size 15NB and 25NB. The material of construction is stainless steel.



Jumbo Water Curtain

Jumbo water curtain nozzle produces a flat semicircular curtain of water projecting upward for radiant heat protection.

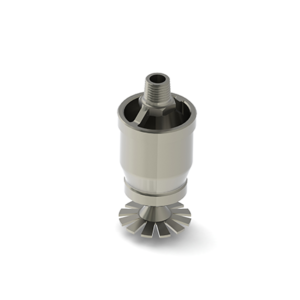

Air Aspirating Foam Spray Nozzle

Foam/Water nozzles are open, air aspirating discharge heads manufactured and designed for installation as part of an engineered fire protection system. Firetech foam water nozzles are designed for applications where a low expansion foam application is needed followed by a period of water cooling. Construction: Stainless Steel 316



End connection: 15 NB (1/2″)

Material: Stainless Steel 316

K factor (metric): 40 and 42

Installation: Pendent Type

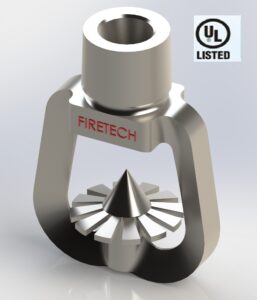

Non Air Aspirating Foam Spray Nozzle

• End connection: 15 NB (1/2″)
• Material: Stainless Steel 316
• K factor (metric): 43 and 79

• Discharge angle (degrees): 140
• Approvals – UL Listed

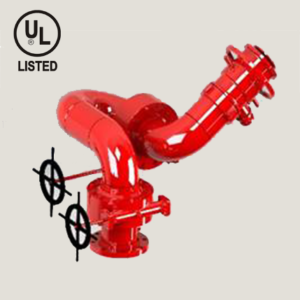

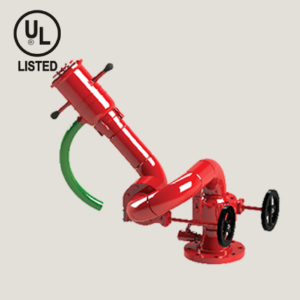

HVLR Foam Monitor Variable Flow Type
