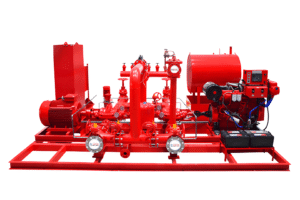

FIRE PUMP & CONTROL VALVES

• Performance characteristics as per NFPA 20
• Complete unit responsibility.
• Complete in-house fabrication capabilities.
• Hydrostatic testing facilities.
• Operation run test as per NFPA 20.

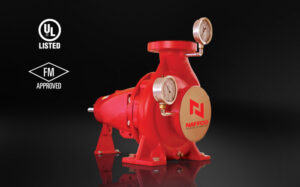

• Horizontal End Suction pumps for capacities up to 750 USGPM
• Drivers: Electric motor drive or diesel engine drive.
• Electrical testing capabilities for motors and controllers connected to fire pumps as per NFPA standards.
• Capable to supply additional accessories wherever required.

• Performance characteristics as per NFPA 20
• Complete unit responsibility.
• Complete in-house fabrication capabilities.
• Hydrostatic testing facilities.
• Operation run test as per NFPA 20.

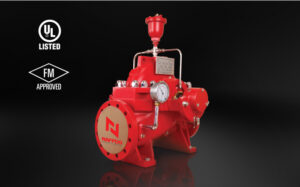

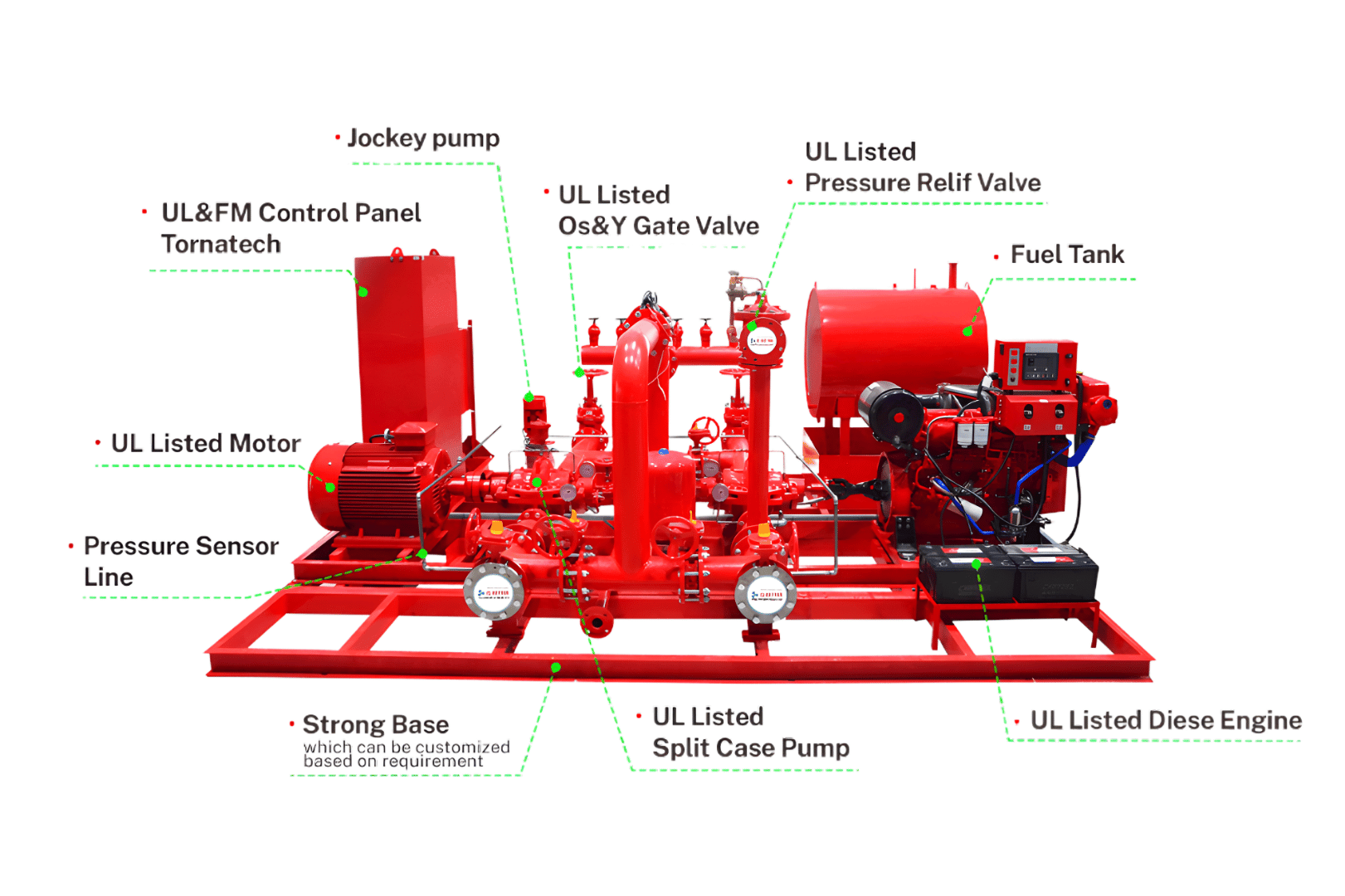

• Horizontal Split case pumps for capacities up to 8000 USGPM
• Drivers: Electric motor drive or diesel engine drive.
• Electrical testing capabilities for motors and controllers connected to fire pumps as per NFPA standards.
• Capable to supply additional accessories wherever required

• Performance characteristics as per NFPA 20
• Complete unit responsibility.
• Complete in-house fabrication capabilities.
• Hydrostatic testing facilities.
• Operation run test as per NFPA 20.

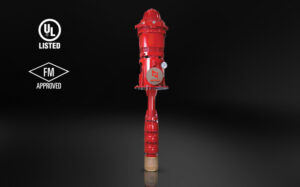

• Vertical Turbine models pumps for capacities up to 6000 USGPM
• Drivers: Electric motor drive or diesel engine drive.
• Electrical testing capabilities for motors and controllers connected to fire pumps as per NFPA standards.
• Capable to supply additional accessories wherever required.

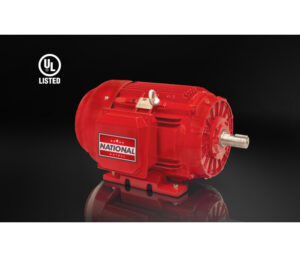

• Rugged Construction for longer service life
• Specially designed for firefighting applications as per NFPA 20.

• NEMA Energy efficient design
• Performance As per NFPA 20
• 3 Phase
• 15 Service Factor
• Locked rotor ratings are as per NFPA 20 recommendations.
• Rolled Steel & Cast Iron construction frame.
• Rated Ambient Temperature 50°C.
• UL File No. EX26863
• Stainless Steel name plate
• RAL 3000 Standard red painted.
• IP55 Degree of Protection
• Altitude rating of 1000 meters above sea level
• F1 foot mounting

• Reliable Performance
• Easy to Service
• Efficient Operation
• Stringent Test
• Quality Materials
• Longer Service Life

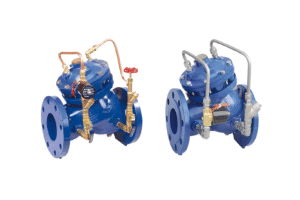

Flange Safety Relief and Pressure Sustaining Valve

British Standard

• Size Range: 2"–24" (DN50–DN600)

• Design Standard: CJ/T 219, JB/T 10674, BS EN 558 Series 10

• Connection Standard: EN 1092-2

• Working Pressure: PN25, PN16, PN10

• Working Temperature: 0°C–80°C

American Standard

• Size Range: 2"–16" (DN50–DN400)

• Design Standard: CJ/T 219, JB/T 10674

• Connection Standard: ASME B16.1

• Working Pressure: 300 PSI / 250 PSI / 200 PSI / 175 PSI

• Working Temperature: 0°C–80°C

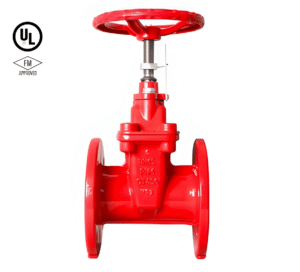

Fire Protection Resilient Seat Gate Valve

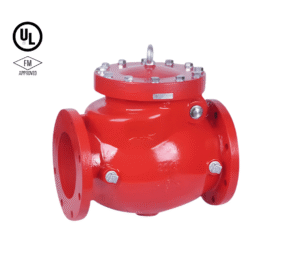

Check Valve

American Standard

• Size Range: 2"–12" (DN50–DN300)

• Design Standard: AWWA C508

• Connection Standard: ASME B16.1 CL125

• Working Pressure: 363 PSI, 300 PSI, 250 PSI, 200 PSI

British Standard

• Size Range: 2"–12" (DN50–DN300)

• Design Standard: EN 16767

• Connection Standard: BS EN 1092-2

• Working Pressure: PN16, PN10, PN25
